BSY 96

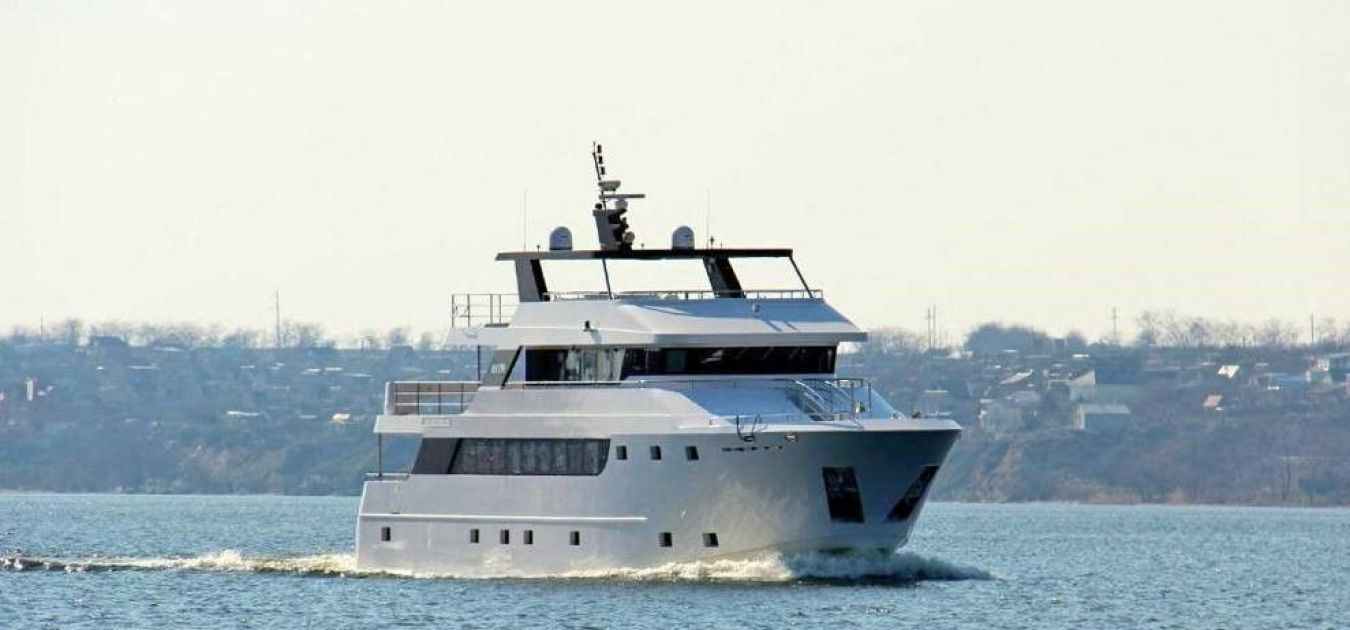

Bsy 96 is Rina Classed 29m Motor Yacht for Sale
Model: BSY 96
Year of construction: 2016
Builder: Black Sea Yacht Yard
Navigation area: Unlimited
Overall length: 29.2 meters (including the hull)
Maximum beam: 7.096 meters (at the widest point of the hull)
Maximum draft (at full load): 2.66 meters
Full displacement: 125.31 tons
Fuel tank capacity : 23.02 cubic meters
Freshwater tank capacity : 4 cubic meters
Black water tank capacity : 4.51 cubic meters
Grey water tank capacity : 4.51 cubic meters
Ballast tank capacity: 4.58 cubic meters
Main engine: “MAN” (Category 1), model: “D 2842 LE412”
Power: 2x 800 horsepower (588 kW), 1800 RPM, 750 engine hours
Generators: 2x (50Hz, 25kW, 380V, 3-phase)
Two steering columns: Manufacturer – “Schottel”, model – “STP330”
Bow thruster: Manufacturer – “Side-Power”, model – “SH420/386TC-U37”
Roll stabilizers: Manufacturer – “Naiad Dynamic”, model – “360”
Stabilizer area: 1.77 square meters
Castoldi Tender 17: Capacity for 9 passengers, maximum speed of 34 knots
Two desalination units: IDROMAR, model: MC2J, with a capacity of Q=130 liters per hour
Two compressor refrigeration units: Manufacturer – Mave, model: AIV15
Diesel condensing heating boiler: Manufacturer – ACV
Hull and superstructure materials:
The hull and superstructure are made of weldable marine-grade aluminum alloys.
Thickness of plating and decking:
Horizontal keel: 14mm
Bottom plating: 12mm
Bulwark plating: 12mm
Chine: 12mm
Side plating: 8mm
Main deck, tank deck, and forecastle deck: 6mm
First-level superstructure deck: 5mm
Second-level superstructure deck: 4mm
Side plating of the first-level superstructure: 5mm
Side plating of the second-level superstructure: 4mm
The main engines are equipped with two auxiliary 24V, 150A generators, providing a power output of 12kW for onboard consumers while the yacht is in motion, eliminating the need for diesel generators. To provide hot water and heating during cold periods of operation, the engines’ cooling system is used for circulation while underway, and a diesel fuel-powered boiler is used when stationary.
