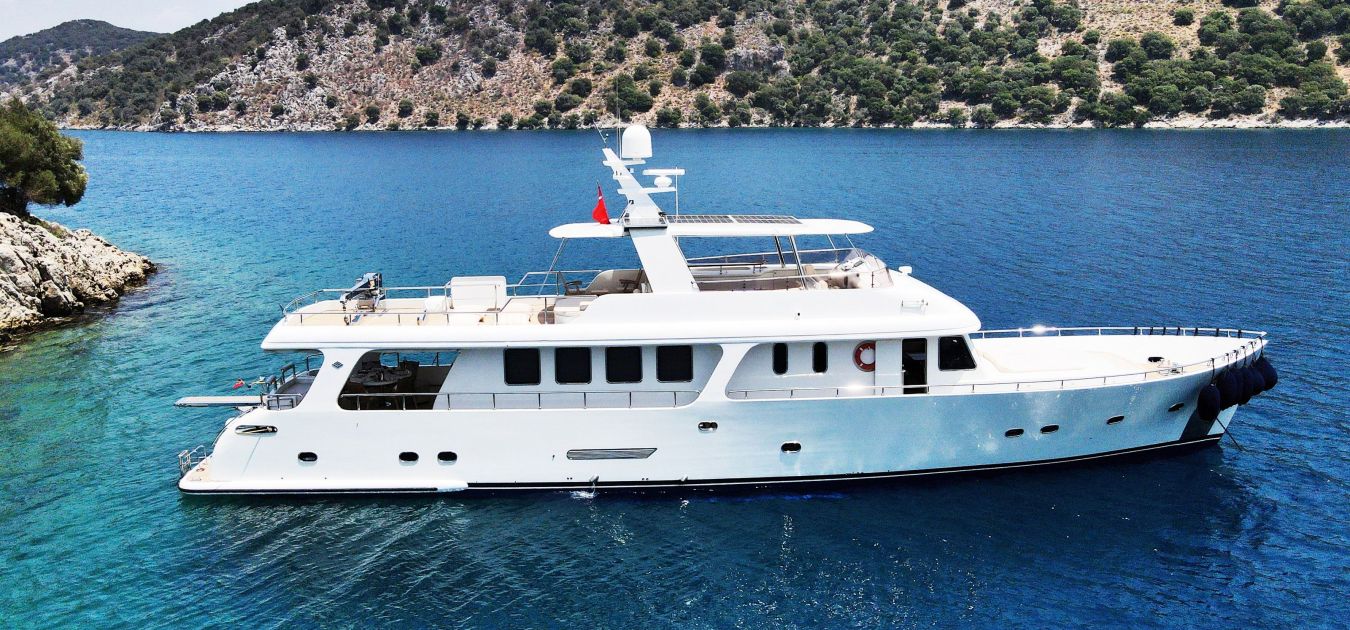

Navy 83 Yacht


Navy 83 yacht originally built for the United States Navy as 83-foot cutters served during World War II and after the war ended. They were designed for off-shore ASW patrolboats. The present owner converted the boat into a luxury yacht in 2007 with new engines and machinery, electronics, etc. Must definitely be seen to be appreciated, their fit took place at Istanbul’s famous Tuzla shipyard where no expense was spared.

https://en.wikipedia.org/wiki/83-foot_patrol_boat

She was built from cedar wood which is one of the most durable and stable wood on earth and it is the best material for wooden yacht construction. The form of the motor yacht was used for many years as a work boat and was under service of US Navy.

She will take you on a historical voyage and you’ll feel you’re cruising on a military vessel. As an 83 feet displacement motor yacht, you’ll enjoy the large living areas such as a large saloon, aft deck, and super large flybridge. You can enjoy your cruise with your friends and your family on the large flybridge even with a crowd. A bar is located on the flybridge and you can enjoy your drinks while you’re relying under the sun or playing backgammon or talking to your friends. Its flybridge is one of the biggest advantages and the reason why you should count on her for your precious holiday.

The crew has totally separate living and sleeping areas, so you’ll definitely not be disturbed, and feel free to enjoy your time on the boat.

She is able to sleep up to 6 guests in 3 cabins including 2 Master cabins and one guest cabin. Master cabins are located with king-size bed, mini bars, desk,s and TV. The guest cabin has two single beds, a mini bar, desk, and TV. All cabins include en-suite shower, toilet.

Navy 83 is powered by 2 x 661 HP main engines.

She has an epoxy laminated Mahogany hull which is 7 cm thick with
3 cm male / female ( convex and concav ) first planking
3 x 1 cm epoxy laminated mahogany strips with copper or plastic U shape nails
2 layers of thick wowen GRP ( fiber glass coating ) with two components epoxy glue
1 cm thick steel putty / filler
above this primer coating and then final glossy paint as finishing …

Thus she is like a *GRP* *boat*, no need maintanence like a wooden boat ,
just pressure wash and apply antifouling every two years and thats it …

She has been dry-docked for 2 years
Current things to be done as follow.
Batteries need to be changed. (16 x 200 Ah)
Since it has been staying for long time, There are some cracks on paints they need to be filled with putty and painted.
This is not a big deal.
Also, shafts need to be manually turned, (As you know when it stays too long, it should not be risked as engine power.)
First run need to be done manually.
Portside schaft has vibration, need to be checked

Except of this standart expences as
Engine Oils and Filters to be changed.
Need Antifouling
Polishing Varnishing

We can send her Survey Report has been taken at 01.12.2018 upon request
Although her LOA is 27.40 meters she has been registered as 24.25 cm to lower expenses.

The 83 Footer Specs

Design Walter J.Mc Innis
Refit : 2007
Flag : American
Builder : Wheeler Shipyard – New York
Build Year : 1967
Material : Laminated Mahogany on Cedar Planks
Lengh : 24.00m

Beam : 5.25m
Draft : 1.90m
Net Tonnage : 46.61 tonnes
Gross Tonnage : 86.71 tonnes

Deck : Teak
Hull Type : Displacement
Zero Speed Stabilizer (2014) (Costs 65.000 euros at that time)

Engine Type : 2x 661 Cummins QSM11 (2007)

Cruising Speed : 11 knots
Max Speed : 14 knots

Consuption : 80lt/hr
Range : 800 nautical miles
Steering : Data, Hydraulic
Water Maker : Idromar 180 lt/hr
Generator : 2x Onan 22.5 Kw
Air Condition : Yes
Battery Charger Mastervolt
Interver : 2x 80000
Batteries : 16 x 200 Ah

6x Solar Panel (2014)

Navigation & Electronics
Log : Cummins
Depth Sounder : Furuno
Compass : Plastimo
VHF : Furuno
GPS : Furuno
Radar : Furuno
Auto Pilot : Furuno
Chart Plotter : Furuno
Navtex : Furuno
TV/Stereo : LG Plasma TV / Harman Kardon Stereo
SatNav : Navy System

Chain : 150m + 100m @ 12 mm
Windlass : Electric

Dingy : Joker 3.80m
Outboard : Evinrude 40 hp (2012)
Life Raft : Plastimo
Anchors : 2
Fire Extinguisher : 10 + Automatic in Engine Room
Life Jackets : 12
Sun Awning : Yes
Others : Hydraulic Winch On Flybridge, 750 kg Capacity

Fuel Capacity : 7.800 lt (Chrome)
Water Capacity : 2.750 lt (Chrome)
Holding Tanks : 1.600 lt (Chrome)

Accomodation

Cabins : 1x Double Cabin, Fwd, Ensuite
1x Twin Cabin, Fwd, Ensuite
1x Double Cabin, Aft, Ensuite

Bathroom : 3 + 2

Crew Quarters : 1x Bunk Cabin, Fwd, Ensuite
1x Single Cabin, Aft, Ensuite

Galley
Cooker : LPG
Microwave : Siemens
Refrigerator : 1x Siemens
Deep Freezer : 1x Siemens
Ice Maker : Manitowoc
Washing Machine : Samsung + Drying Machine
Dish Washer : Siemens

Reference Number5389
Asking Price720.000 Euros
Builderİstanbul / Tuzla
Yacht Availabilityavailable
Length overall24 meters
Hull MaterialCold_Molded_Wood_Epoxy
Built2007
Refit2022
Beam5.20
Max Draft1.76
Base PortGocek
Maximum Speed
FlagUsa
Crew Cabins1
Guest Capacity10
Cabins5

Machinery & Electronics

Main Engines2 X Cummins 661 HP / 2007
Engine Hours2 X 940 HRS
Power Generators2 X 22.5 Kwa Onan
Fuel Capacity7800
Fresh Water2750
