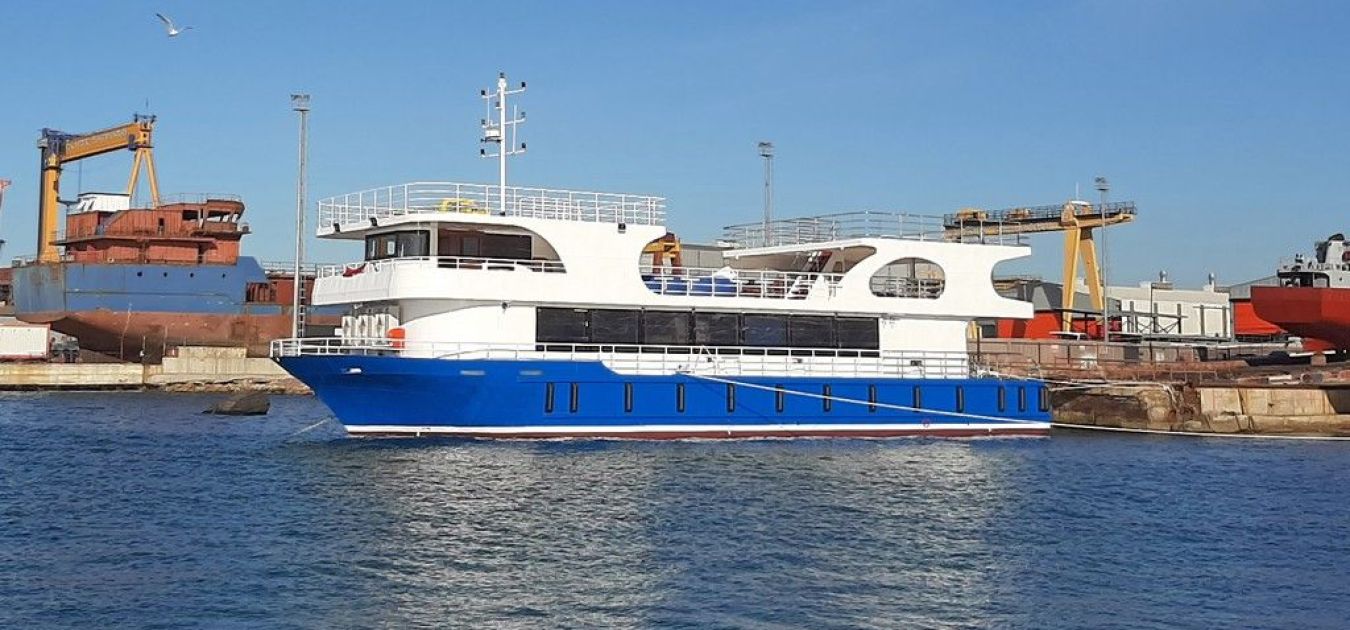

Glass Bottom Semi Submarine
She is currently underconstruction project which will be completed and launched in April 2020 …
the new project will have 28.50 m loa twin engines and 175 guests capacity .
price upon completion will be 1.800.000 usd
Turkish LLOYD Semi Submarine Motor Yacht
M/v Submarine
Loa (Length Overall) Full Length 28.45 M
Lwl (Lenght Of Waterline) Cut Water 25.96 M
Lbp (Length Between Perp.) Length 22.96 M
B (Molded Breadth) To 8.20 M
D (Depth) Leather 4.55 M
T (Draft) Graft 2.90 M
H (Height From Lwl) 6.45 M
Disp (Displacement) Total Tonnage 241.30 T
Service Speed Speed 12 Knots
Passanger Capacity 170 Persons In Capacity
Class Society Lloyd
Tanks –
Diesel Do. Service Tanks – P Diesel Tank 2.332 T
Diesel Do. Service Tanks – S Diesel Tank 2.332 T
Fresh Water Tank – Rope Fresh Water Tank 2.564 T
Fresh Water Tank – Work Fresh Water Tank 2.803 T
Fresh Water Tank – 2c Fresh Water Tank 2.612 T
Wise Tank – C 0.142 T. Oil Tank
Sewage Tank – 1p Dirty Water Tank 1.067 T.
Sewage Tank – 2p Split Water Tank 1.985 T.
Sewage Tank – 2s Split Water Tank 1.985 T.
Inventory List
Main Engine 2x 320 Bhp – 235 Kw Doosan Md 196 Ti Main Machine 2
Generator 126 Kva – 107 Kw Doosan Ad 136 T Generator 2
Bow Thruster 37 Kw Head Propeller 1
Stern Thruster 37 Kw Aft Propeller 1
Anchor Windlass Data 2001 Hp Windlass 1
Anchor 285 Kg Snap Anchor 1
Chain 17.5 Mm Leaf Chain 165 M.
Steering System 380 V Ac Data Ds 460l Rudder 1
Wise Pump System 1
Sewage Pump Pi̇s Water Pump 3
Fresh Water Pump Fresh Water Pump 2
Fire Pump Fire Pump 3
Fire Hose Box Fire Hose Box 8
Fire Blanket Fire Blankeṫ 2
Fixed Fire Extinguishers Co2 1
Battery Constant Co2 Battery 2
Powder Fire Extinguishers 6kg 6kg Powder Fire Extinguisher 10
Powder Fire Extinguishers 2kg 2kg Powder Fire Extinguisher 2
The Radar Garmin 1222xsv Radar 1
Gps Garmin 19x Gps 1
Vhf Icom M323 Radio 1
Depth Sounder Garmin Ss502 Fish Finder 2
Autopilot Furuno Nav 700 Autopilot 1
Cctv Camera System 2
Camera Cameras 28
Life Jackets Martek Life Jacket 200
Life Jackets – Children Martek Life Jackets 30
Life Buoys Was 2.5 Kg Martek Life 10
Life Buoys 4.0 Kg Martek Life Shot 2
Rocket Parachut Flares Parachute Sign Flares 1
Smoke Signal Smoke Light 1
Hand Flare Hand Glove 1
Fenders Fender 4
Indoor Ac Units – Air Conditioning Indoor Units
Ceiling Type A / C 24,000 Btu / H Ceiling Type Air Conditioner 5
Ceiling Type A / C 12,000 Btu / H Ceiling Type Air Conditioning 1
Kitchen Ducted 24,000 Btu / H Kitchen Ducted 1
Wall Type A / C 7,000 Btu / H Wall Clamp 3
Outdoor Ac Units – Air Conditioning Outdoor Units
Outdoor Units 56,000 Btu / H Dental Units 3
Underwater Glass Spares 30 Mm Acrilic Underwater Glass Spares 2
Table For 6 Persons Table For 6 Persons 13
Table For 8 Persons Table For 8 Persons 6
Seating Group 3-double 3-seater Group – Double 10
Seating Group 3-single Seating Group 3-single 4
Seating Group 4-double Seating Group – Double 5
Seating Group 4-single Seating Group – Single – 2
Upper Deck Table Terrace Tables 6
Upper Deck Chairs
Sunbed With Sunbed 120
Sunbed Cushions Mi̇nder 120
Tv 42 “Tv 2
Tv 17 “Tv 2
Galley Inventory –
Vertical Single Door Cooler 2 Single Door Cooler 2
Horizontal Top Cover Cooler 1
Ice Cabinet With 2 Doors Counter Top 3
Vertical Single Lid Depfreze Other Single Lid Depfreeze 1
Electric Grill Electric Grill 1
Double Fryer Fritoz 1
Electrical Fryer 4-burner 1
Hot Water 50 L Water Heater 1
Dishwasher Dishwasher 1
Dinner Set Kitchen Dining Set 1
Washing Machine Washing Machine 1
