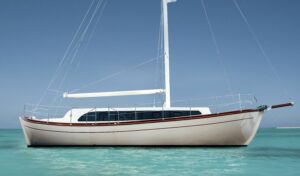

Tirhandil Modern
Tirhandil Modern 12,23m.
BUILDING MATERIAL & MAIN DIMENSIONS
LOA : 12,23 m. without bowspirit
BEAM : 4,38 m.
DRAFT : 1,40 m.
DISPL. : 9,50 tonnes
BALLAST : 1,1 tons
HULL : GRP
SUPER STRUCT. : Marine Plywood Epoxy Laminated
ENGINES & TANK CAPACITIES
MAKE : Yanmar
POWER : 1 x 75 Hp
TRANSMISSION ZF 2,45:1
FUEL TANK : 340 lt.
FRESH WATER T. : 200 lt.
BLACK WATER T. : 300 lt. With Vetus No-Smell filters
GENERAL LAYOUT & PROPERTIES
INTERNAL LAYOUT : 2 Cabins with double beds
1 Saloon with a seating group, dining table
1 Galley equiped with the necessary kitchen devices
1 Engine room
1 Crew cabin with sink and WC
CABIN FLOORS : Iroko
CABIN INTERIORS : American walnut
CABIN CEILINGS : V-grooved and white lacquer painted marin plywood.
BATHROOMS : Teak Floors
Sink, Shower and Toilet
ISOLATION : 30mm. Non-flambale Rockwool for cabin separation
50mm. Non-flambale Rockwool for cabin sides
50mm. Non-flambale Rockwool for Cabin & Saloon ceiling
50mm. Non-flambale Rockwool for engine room
DECK LAYOUT : Burmese teak
Aft deck with helm station and seating with foldable dining table, Large front deck
ELECTRIC SYSTEM
SERVICE BATT. : Victron Gel batteries
ENGINE START BATT. : Delco Calcium batteries
GENERATOR : ONAN 7,5 KW
CATHOTIC PROTECTION : Zinc Anodes, as necesary
SHORE CONNECTION : Shore Plug and Shore Cable(20m.)
AC-DC CONT. PANELS : Aluminum Panel with necessary curcuit breakers
EQUIPMENTS
FURNACE : 2 hobs electric 220V
REFREGIRATOR : 220 v
HORN : 12 Volt
SEARCH LIGHT : 12 Volt
COMPASS : 12 Volt
NAVIGATION LIGHTS : 12 Volt
TANK LEVEL GUAGES : 12 Volt
BAROMETER : √
THERMOMETER : √
HYGROMETER : √
FRESH WATER PUMP : 12 Volt
BILGE PUMP : 12 Volt
MACERATOR PUMP : 12 Volt For black water
DECK SHOWER : √
TOILET : 2of Planus 12V
SINKS: √
TAPS : √
PORTHOLES. : 8 Aluminum
DECK HATCH. : 3 aluminum
ALUMINIUM GANGWAY : 1,6 m.
WOODEN STEERING : 60 cm. Diameter
MOORING & STEERING EQUIPMENTS
WINDLASS : 12 V ELECTRICAL, DATA
STEERING : HYDRAULIC, DATA
ANCHOR : Delta 16 kg
CHAIN : 8mm Galvianise
BOW THRUSTER : Lewmar
SAILING EQUIPMENTS
MASTS : 1x Aluminium
RIGGING : Stainless Steel
CHAIN CABLES : Stainless Steel
SAILS : DACRON Sails for Main and Genoa
NAVIGATION EQUIPMENTS (ELECTRONICS)
TRIDATA SYSTEM : Depth,Speed,Log,Temperature RAYMARINE
WIND SYSTEM : Wind Transducer + Display (Carbon Fiber)
VHF : ICOM M-421 + VHF Antenna.
