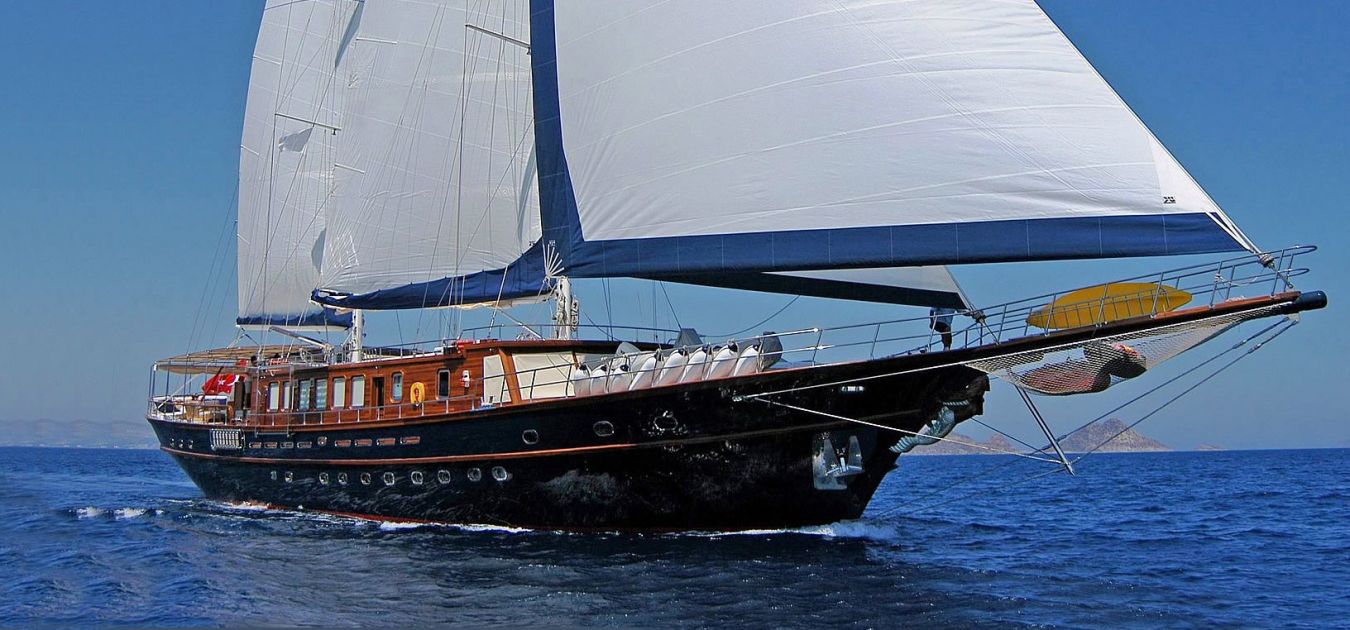

Steel Schooner
Schooner For Sale
Steel Schooner has has NK class ( japanese ), so she has no coastal restrictions none whatsoever and she and she would be ideal as cargo carrier / sailing ship as well.
She has 9.55 meters wide beam and very stable and seaworthy.
Length Overall: 131 ft/40 Meters
Length Waterline: 94 ft/28.80m
Breadth: 31ft/09.55m
Draught maximum: 13 ft/03.90m
Displacement: 300 T
Type: Steel Ketch
Building Yard: Bodrum, TURKEY
Year Built: 2005
Hull Material: Steel
Superstructure: Steel veneered with Mahogany
Decks: Teak
Interiors: All accommodation spaces are subdivided by fireproof, Panels veneered with cherry wood
ENGINES&MACHINERY
Engines : 2 x MAN 675 HP / 2100 RPM
Gearbox: ZF W350
Bowthruster: SP 550 HYD
Speed Max: 12 knots
Speed Cruise: 11 knots
Range: 1000 Nautical miles.
Generator : KOHLER 2 x 55 kW & 1 port generator 23 kW
Air-conditioning: OCEAN BREEZE Tliroughout, self-contained heat / cool Units, independently controlled in each cabin, salon, galley and wheelhouse
TANKS
Fuel Tanks: 10.000 It.
Fresh Water Tanks: 14.000 It
Waste Tanks: 11.000 It.
Mast&Sail
Masts: 2 aluminum
Sails: Dacron sails, 5 pieces totally 600 m2, 2 lazy bags
Passenger Accommodation
6 guest cabins for a totally 12 passengers
One 48 m2 master suite with walk-in dressing room & 2 bathrooms,
3x VIP guest suites each with bathrooms
One 15ni2 double guest cabin with bathroom
One 15 m2 triple guest cabin with en-suite bathroom
Crew Accommodation 1 captain (double) with en-suite bathroom & 3 crew cabins accommodating 6 crew & 2 bathrooms.
Galley
Fully equipped galley with, built-in SIEMENS deep-freezer, 2 refrigerators, electric oven & cooker, dishwasher. KALE icemaker.
Main Deck
80 m2 bar & dining salon
Fully equipped galley & provision rooms, utility room,
the day head, wheelhouse forward with crew mess,
85 m2 aft deck area with dining table for guests, steering console, aft cushions
50 m2 of water toys & sports deck forward
110 m2 upper deck with sunbathing cushions
Navigational Equipment
SIMRAD VHP Radio,
GYRO compass,
SIMRAD echosounder & speed log
2 x SIMRAD radars
2 x SIMRAD GPS Chartpiotters
SEATEL Satcom,
SIMRAD autopilot S30
Repeater system for helm positions.
Safety Equipment
Two life rafts for 14 pax each
Four horseshoe buoys & 26 life-jackets
Smoke detectors in all accommodation spaces, galley &
Engine room, fire extinguishing devices for for
Accommodation spaces.
Automatic controlled C02 system for engine room
Mooring & Deck
Two DATA vertical hydraulic windlasses with single drums
Two DATA warping capstans on the aft deck
HALL type anchors, 2 x 290 kg
22 m calibrated galvanized chains 2 x 140 m
BESENZONI Deck crane, 600 kg / 4,20 m
Stainless steel swimming ladder with teak steps.
Entertainment
SONY Plasma TV, DVD & home theatre system in salon.
LCD TV in master & 2 VIP cabins
NETPA 20′ LCD tv at crew mess in galley
Tenders & Water Toys
1x 5.20 Rib Boat 100 HP yamaha
1x Boat 5.80 m – 150 HP yamaha
Detailed Spec
Main Engine : MAN D2842 Le 497kw 2100rpm
Red. Gear : Zf Marine Type:zfw350
Main D/g : Kohler 55efoz 55kw 68.8kva 50hz 1500rpm 104 A
Port D/g : Kohler 23efoz 23kw 28.8kva 50hz 1500rpm 43.7 A
Water Maker : Tecnicomar Model:c1500 230v 50hz 12a Cap:180 Lt/h
Sewage Treatment : Tecnicomar Model:ecomar24 Cap:7000lt/day 1kw 230v
Steering Gear : Data Hidrolik Type:des1se4s 4kw 21lt
Bow Thruster : Side Power Sp550hyd
Fire Pump : Gianneschi Type:acm 502 Bt/3 9,2kw 1450rpm
Emerg. Fire Pump : Gianneschi Type:m-acm 502 B Diesel V 13.5 Kw 1750 Rpm
Grey Water Disc. Pump : 380 V 550lt/min Head 5m
Boiler : Gianneschi Type:150ve 230/400v 6kw Cap:150lt Pmax:5 Bar
Battery : Cell Type:12pozs Din 40736t1 1500ah 2 Set 2x 24v
Battery Charger : Victron Energy 4x100amp
Hidrafor Pump220v : Gianneschi Type:jet 518 B Me 230v 7.4 A 1.1 Kw 2900rpm
Hidrafor Pump24v : Gianneschi Type:jet 518 B 24v 50a 1.1 Kw 2800rpm
Hidrafor Tank : 100 Lt
Bilge Pump : Gianneschi Type:acm 501 Bt /k3 4kw 1450rpm 230/400v 15.2/8.8a
Co2 System : Kalafatoğlu 135kg Co2 (Volume Of The Machine:144 M3)
F.w Tank : 14400 Lt
F.o Tank : 10400 Lt
Grey Water Tank: 7400 Lt
Black Water Tank: 3700 Lt
Bilge Tank: 1000 Lt
Radar: Jrc 48 Miles, Simrad 48 Miles
Music System: Sonos
Tv Satellite : Simrad 90cm
