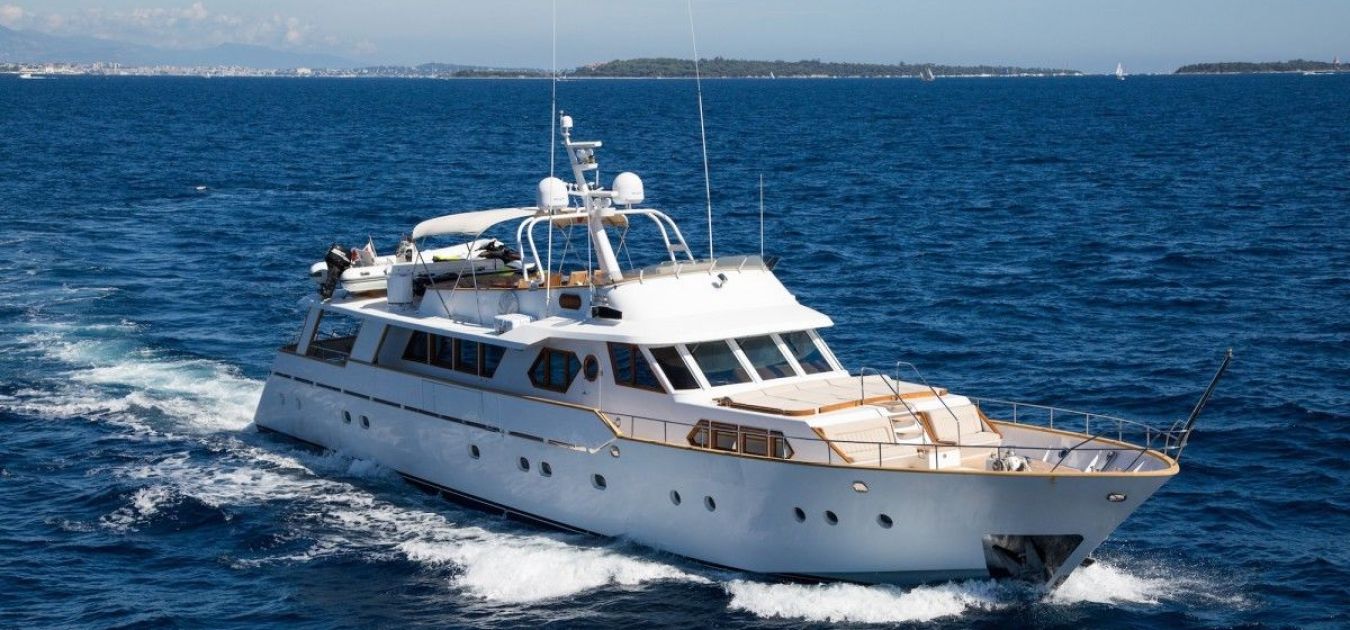

M/Y Libertus
1975 Displacement Benetti
Range 1.800 nautical miles.
5 cabins (1x Single, 2x Double, 2x Twin), (2 Queen, 1 Double, 4 Single Bed)
Latest Works
Pumping systems
Main fire Pump : Gianneschi ACM-401-BT 2,2kW / 230V (2015)
Fuel pump : Gianneschi IN-PQ 40 / 24V (2015)
Grey water pump : Gianneschi MV-44-G / 230V (2015)
Black water pump : Gianneschi MVI-60-AC / 230V (2015)
Lift pump : Jabsco 50880 – 24V (2015)
2x fresh water pump CALPEDA NGM4A 220V (2015)
Air conditioning : new sea water + fresh water pumps : Gianeschi
Seacocks valves refitted or renewed in 2016 (with certifications and invoices) :
2x main engines exhaust refitted (bronze)
2x generators exhaust refitted (bronze)
4x sea water inlets refitted (bronze)
1x main fire/bilge pump outlet new 2016
1x conditioning outlet new 2016
1x secondary bilge/fire pump outlet new 2016
1x black water outlet new 2016
1x grey water outlet new 2016
1x water maker inlet new 2016
1x secondary grey water outlet + vent new 2016
220V – 50 Hz – up to 90A
8x Gel service batteries 2015
4x Gel start batteries 2015
1x 220V – 90A Cable shore 20mts 2015
2x Mastervolt 120A (charger) 2015
2007-2008: Full electrical refit. MEGGER TEST OK 2015
New Tv’s in all cabins 2015
TNT antenna 2015
2x SeaTel 60cm
Audio system – Vip / Twin (AudioTV) – Master (Bang & Olufsen) – Dinning & living areas (Bang & Olufsen)
4G antenna + repeaters (available all areas) 2015
DVD player (living)
GPS SIMRAD GN30 Shipmate
Autopilot SIMRAD AP 50
Gyrocompass SIMRAD AP 50 Simrad AR78
VHF DSC SAILOR RT5022 Solas
Echo sounder NOBELTEC
2x Radar KODEN (1x 4Kw + 1x 6Kw)
4x Monitor supervision (SCS MARE): -Cameras, NMEA display, monitoring (engines/tanks/batteries/generators/alarms)
Plotter FURUNO NAVNET TZT touch sensitive (2015)
NAVTEX FURUNO NX 700 2015
MF/HF JRC NCT 196 DSC Terminal + JSB 196 GM
3x SIMRAD IS 15 – 1x Multi / 1x Anemometer / 1x Rudder
Magnetic compass Zenith
Electrical commands Kobelt
Fly bridge
Screen-repeater FURUNO LCD 15′ – Monitoring + plotter (2015)
VHF SIMRAD RS 82
3x SIMRAD IS 15 – 1x Multi / 1x Rudder / 1xCompass
1x Simrad autopilot AP50
Magnetic compass Zenith
SOLAS B Approved and certified
4x Lifebuoys
24x Life vests (20 adult / 4 children) 2015
2x Liferaft (2x 10 persons ARIMAR) 2015
1x EPIRB Mac Mundo 2015
1x SART 2015
2x VHF GMDSS 2015
CO2 Engine room system
CO2 Detector laundry (2015)
Smoke detector system – 20 areas – (2015)
10x Foam extinguishers 2015
3x CO2 extinguishers 2015
2x guns firefighting
3x hoses
1x Emergency bilge/fire pump : gazole new 2015 (mobile)
1x Main bilge/fire pump located in the engine room 2015
1x Secondary bilge/fire pump located in the engine room (overhauled 2015)
1x Secondary bilge pump located in the engine room (overhauled 2015)
1x New SCBA : Self-Contained Breathing Apparatus (2015)
2x Safe’s : Owner cabin & wheelhouse
Engines: 2 x Detroit 650
Generators: 2 x Cumins MDKBU 27 kw
Gross Tons: 121
Cruising speed: 12 knots
Maximum speed: 15 knots
Fuel consumption: 120 Litres/Hr at cruising speed
– 4.6m tender, 40hp engine, for up to 8 persons
– 1 jet-ski Sea Doo Wake Pro 215 (new, year 2015)
– 1 wakeboard
– Water skis
– Donut
– Fishing equipment
